AP-R Series Rotary Lobe Pumps

AP-R Series Rotary Lobe Pumps

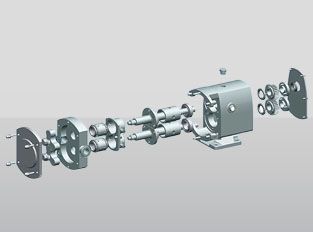

Standard Design

Bare-shaft construction
Stainless steel base plate & adjustable feet
Built-in safety valve
Motor type: B5, 50Hz, 60Hz
Internal surface finish: Ra≤32 µin
External surface finish: mirror polish
CIP cleaning and SIP sterilization applicable

Technical Specifications

Max flow rate: 395GPM
Max pressure: 12bar/174PSI
Max temperature: 302°F
Max revolution: 1450rpm

Motor

Power	Voltage and Frequency	Power	Voltage and Frequency
0.75kW	210 - 230V/50Hz 360 - 400V/50Hz 420 - 460V/60Hz	4kW	360 - 400V/50Hz 630 - 690V/50Hz 420 - 460V/60Hz
1.1kW		4.5kW
1.5kW		7.5kW
2.2kW		11kW
3kW		15kW

Assembly Dimension Drawing With Motor

Series	L1	L2	C1	C2	C3	C4	C5	N1	N2	K1	M1	E1	F1
AP-R-20	332	538	302	487	50	294	470	68	75	550	700	445	495
AP-R-23	346	638	302	507	50	294	499	68	75	550	700	445	495
AP-R-25	356	638	302	507	50	294	499	68	75	550	70	445	495
AP-R-30	457	744	338.5	565	50	331.5	558	70	75	670	850	520	570
AP-R-35	465	744	338.5	565	50	331.5	558	70	75	670	850	520	570
AP-R-55	474	784	338.5	565	50	331.5	558	70	75	670	850	520	570
AP-R-60	476	784	338.5	565	50	331.5	558	70	75	670	850	520	570
AP-R-70	584	960	443	690	60	418	665	75	85	750	900	600	650
AP-R-80	587	960	443	690	60	418	665	75	85	750	900	600	650
AP-R-100	606	960	443	690	60	418	665	75	85	750	900	600	650
AP-R-125	633	1020	443	690	60	418	665	75	85	750	900	600	650

Assembly Dimension Drawing Without Motor

assembly drawing witouth motor

Model	A	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q	R	U	OD	ID
AP-R-20	184	229	123	100	125	332	293	52	153	100	19	132	107	145	146	105	198	120	50.5	22
AP-R-23	184	229	123	100	125	346	296	52	153	100	19	132	107	145	146	105	198	120	50.5	35
AP-R-25	184	229	123	100	125	356	306	52	153	100	19	132	107	145	146	105	198	120	64	47.5
AP-R-30	214	273	149	125	155	450	392	60	186.5	125	30	181	147	179.5	210	146	234	155	64	47.5
AP-R-35	214	273	149	125	155	462	397	60	186.5	125	30	181	147	179.5	210	146	234	155	77.5	59.5
AP-R-55	214	273	149	125	155	470	402	60	186.5	125	30	181	147	179.5	210	146	234	155	91	66
AP-R-60	214	273	149	125	155	477	406	60	186.5	125	30	181	147	179.5	210	146	234	155	91	72.2
AP-R-70	278	397	221	193	233.5	584	492	103	281	207	33.5	275	161	256	275	119	342	233.5	91	72.2
AP-R-80	278	397	221	193	233.5	587	500	103	281	207	33.5	275	161	256	275	119	342	233.5	106	81
AP-R-100	278	397	221	193	233.5	606	510	103	281	207	33.5	275	161	256	275	119	342	233.5	119	97.4
AP-R-125	278	397	221	193	233.5	633	524	103	281	207	33.5	275	161	256	275	119	342	233.5	144.5	125
